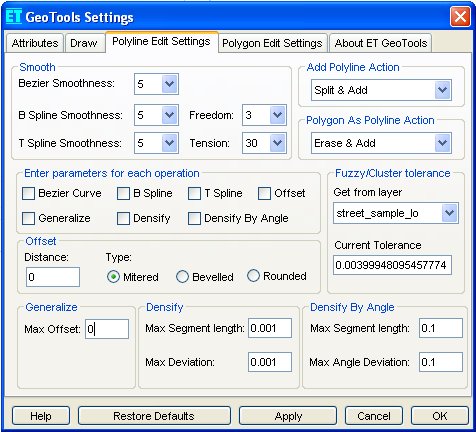

Allows adjustment of the parameters used in the tools for editing polyline layers.

Note: A quick setting for the parameters for most of the tools is available via the hot keys when a tool is active. See Hot Keys topic for a list of the hot keys used for the different tools.

• Fuzzy/Cluster tolerance panel allows viewing the defaults for selected layer and setting the Fuzzy tolerance to be used. It is highly recommended to check the default values for the current edited layer before assigning the value for the fuzzy tolerance. Using incorrect (too large or too small) values might lead to undesirable results when editing!!!
• Enter parameters for each operation: If the boxes against the functions are checked, the user will be prompted for parameters each time a tool is used. If the box is not checked the corresponding tool will use the parameters already set. The parameters can be set in the Control Panel or by using the Hot Keys when the tools are active
• Smooth: Sets permanent parameters for the smooth tools. If the corresponding box in the "Enter parameters for each operation" is checked these parameters are ignored and the user is prompted for a parameter each time the tool is used.
• Generalize/Densify: Sets permanent parameters for the Generalize, Densify and Densify By Angle tools. If the corresponding box in the "Enter parameters for each operation" is checked these parameters are ignored and the user is prompted for a parameter each time the tool is used.
• Offset: Sets permanent parameters for the Offset  tools. If the corresponding box in the "Enter parameters for each operation" is checked these parameters are ignored and the user is prompted for a parameter each time the tool is used. The  type of offset can be set only in the Control Panel
• Add Polyline Action:  This setting defines how the tools that add a new polyline to a layer ("Draw Polyline", " Copy Features from other layer", "Draw Spline" will behave. A Hot Key is available to set this parameter when the functions are active.
• Polygon As Polyline Action: This setting defines how the tools that add a polygon to a polyline layer ("Draw Polygon", " Copy Features from other layer", "Draw Polygon", "Draw Circle", "Draw Donut") will behave. A Hot Key is available to set this parameter when the functions are active.

The changes need to be saved with the "Apply" button in order to take effect.

The "Restore Defaults" button loads the default settings for all the tools.
